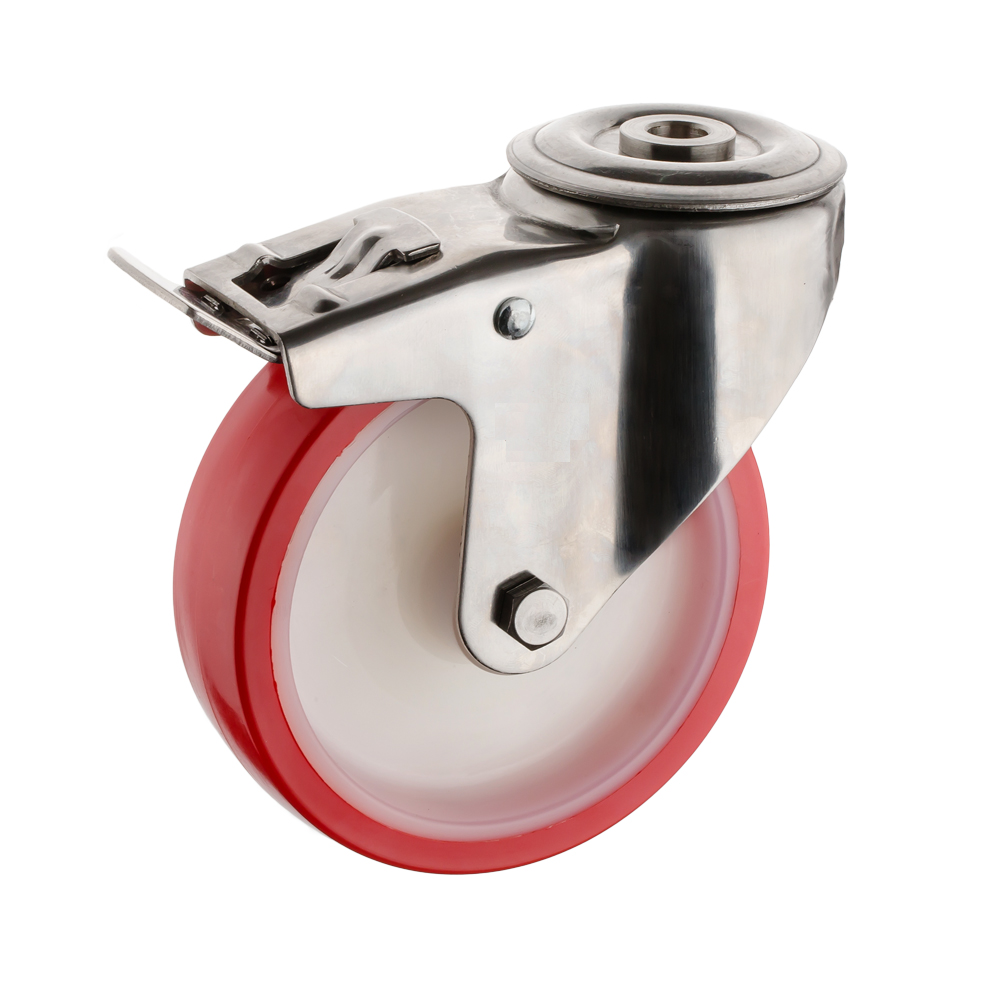

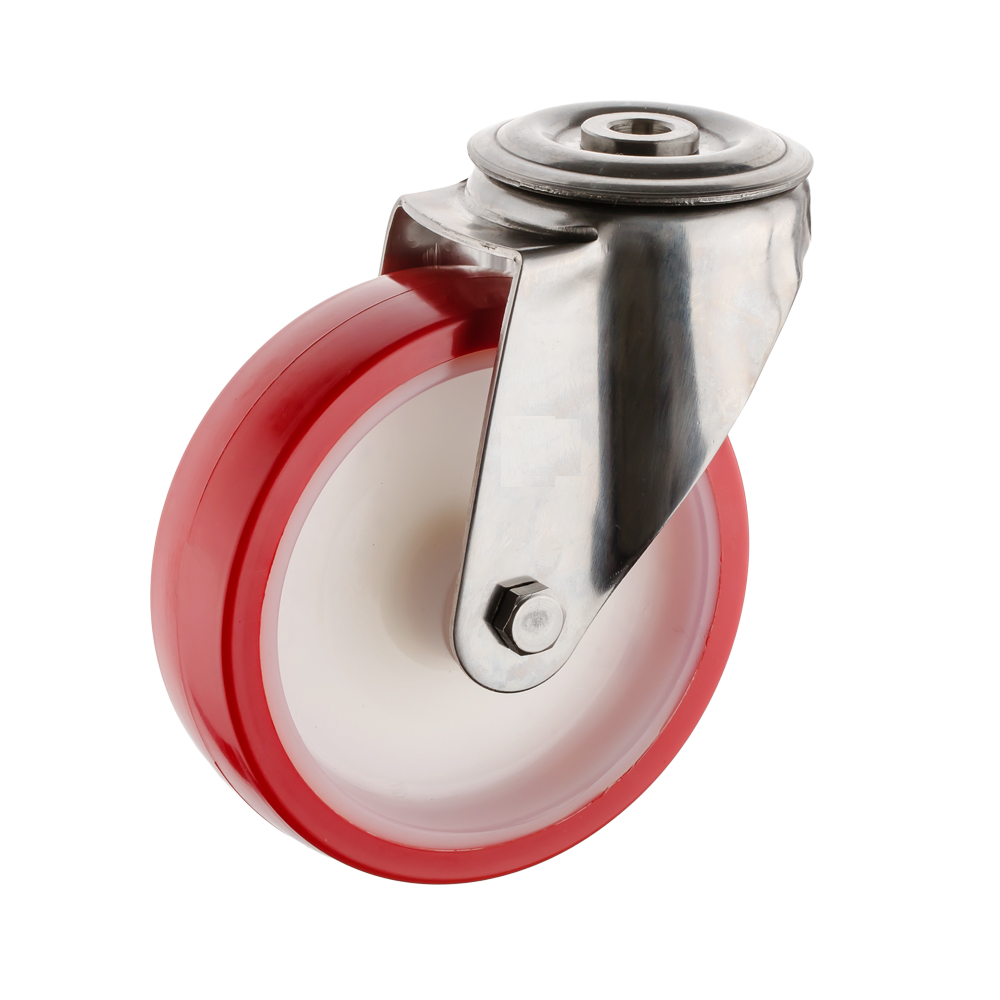

Industrial caster, Stainless steel 304 fork,PU wheel with Nylon center,
26D:roller bearing;26C:plain bearing;26E:ball bearing
| Stainless steel 304 caster housing |
| Polyurethane wheel tread, nylon/PPcenter |
| Roller bearing |
G104-26D080x30 G104-26D100x30 G104-26D125x35 G104-26D160x45 G104-26D200x50
G104-26D080x30S G104-26D100x30S G104-26D125x35S G104-26D160x45S G104-26D200x50S
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Barrier Width (mm) |
| G104-26D080x30 | 80 | 30 | 130 | 106 | 37.5 | 2.5 |
| G104-26D100x30 | 100 | 30 | 150 | 128 | 40 | 2.5 |
| G104-26D125x35 | 125 | 35 | 200 | 153 | 47 | 2.5 |
| G104-26D160x45 | 160 | 45 | 320 | 197 | 68 | 3 |
| G104-26D200x50 | 200 | 50 | 350 | 240 | 68 | 3 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Barrier Width (mm) |
| G104-26D080x30S | 80 | 30 | 130 | 106 | 37.5 | 2.5 |
| G104-26D100x30S | 100 | 30 | 150 | 128 | 40 | 2.5 |
| G104-26D125x35S | 125 | 35 | 200 | 153 | 47 | 2.5 |
| G104-26D160x45S | 160 | 45 | 320 | 197 | 68 | 3 |
| G104-26D200x50S | 200 | 50 | 350 | 240 | 68 | 3 |
