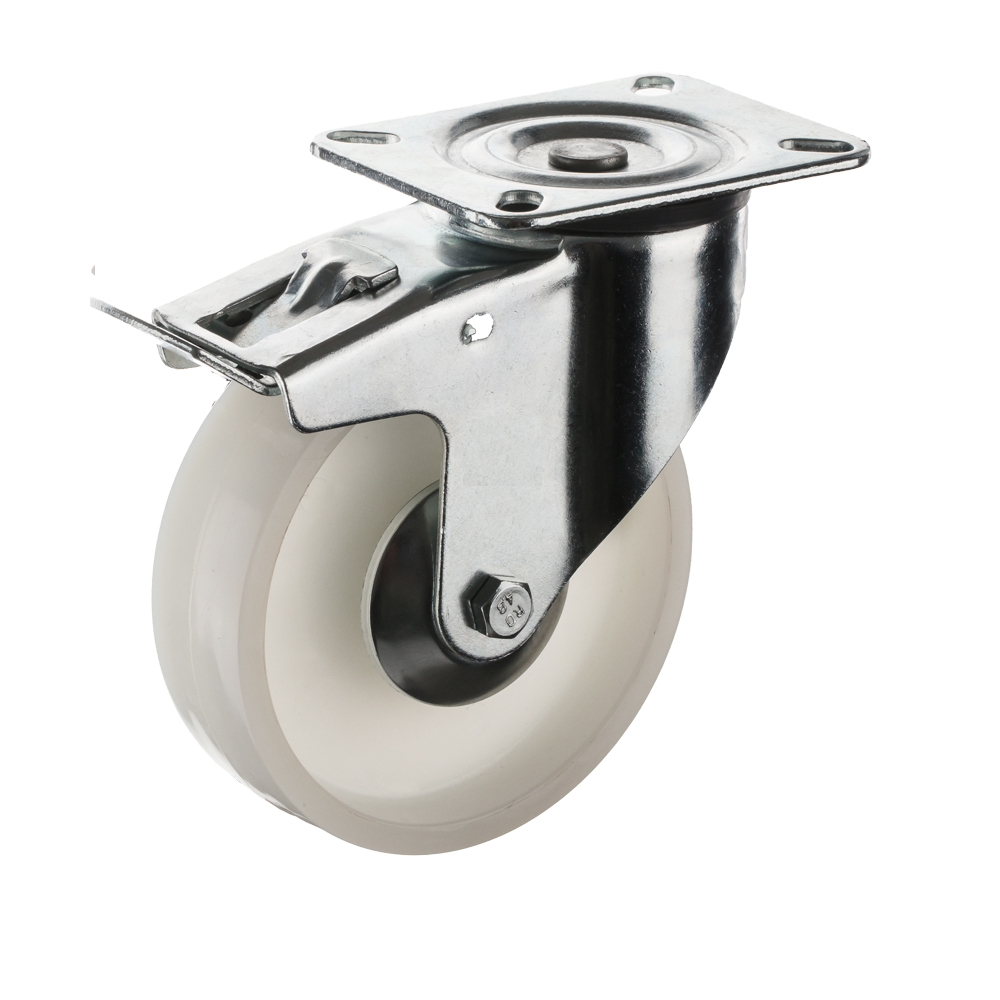

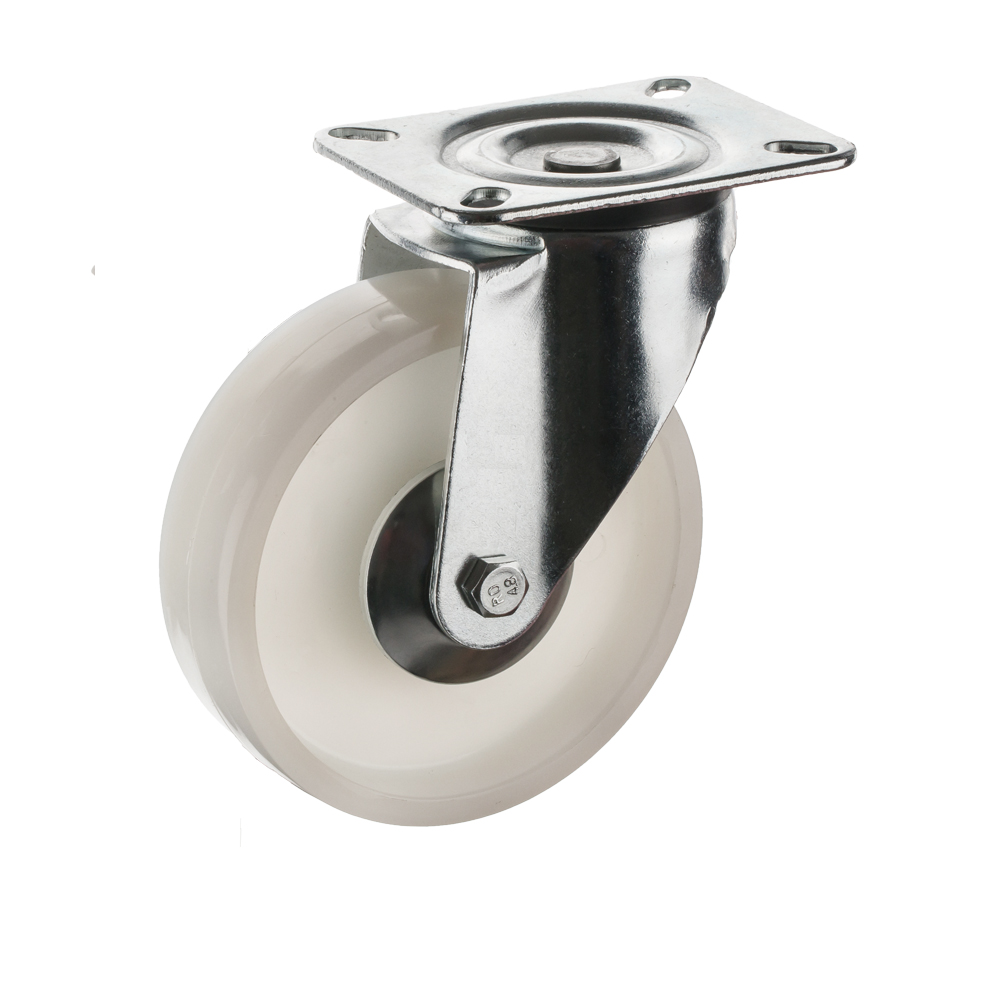

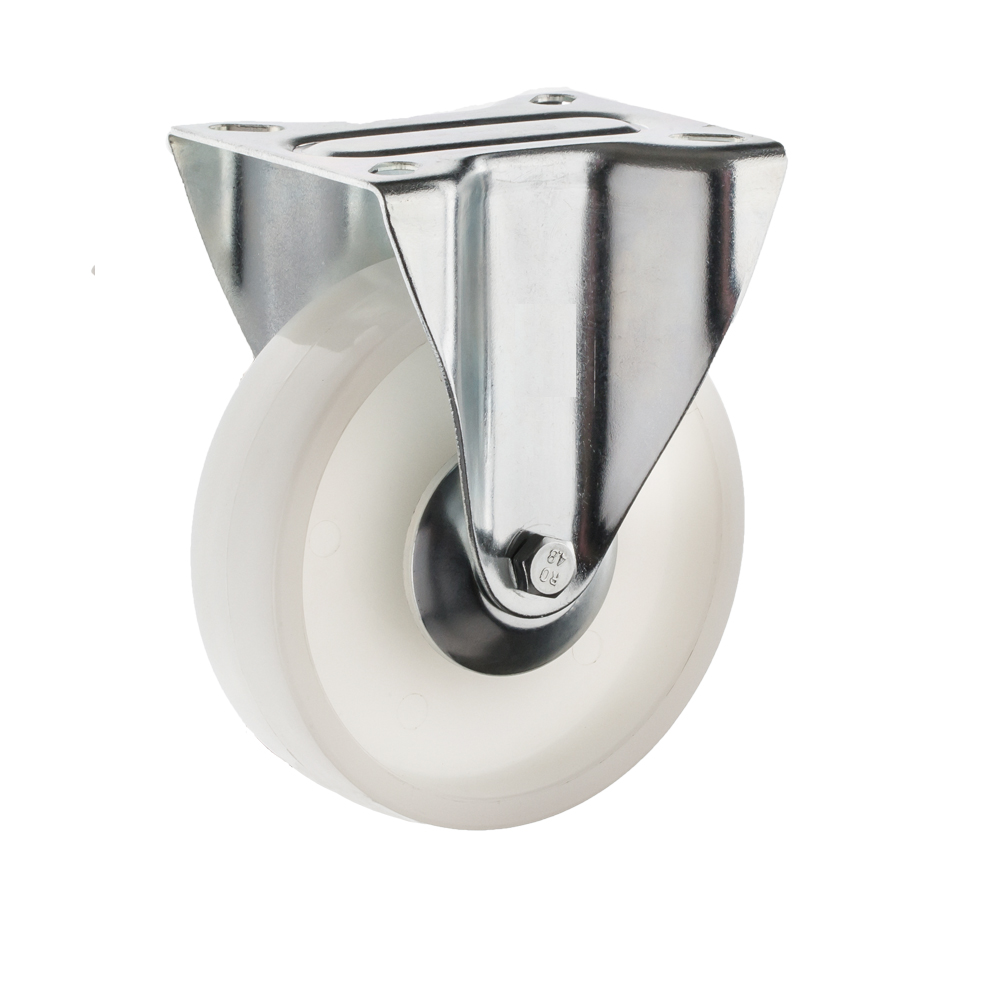

Industrial caster, steel with zinc plating fork,Nylon wheel,roller bearing
| Steel housing with bright zinc plating |
| White nylon wheel |
| Roller bearing |
P102-20D080x35 P102-20D100x35 P102-20D125x35 P102-20D150x40 P102-20D160x40 P102-20D200x50
D102-20D080x35 D102-20D100x35 D102-20D125x35 D102-20D150x40 D102-20D160x40 D102-20D200x50
P102-20D080x35S P102-20D100x35S P102-20D125x35S P102-20D150x40S P102-20D160x40S P102-20D200x50S
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| P102-20D080x35 | 80 | 35 | 100 | 106 | 37.5 | 9 | 105×82.5×3 | 80×60 | 2.5 |
| P102-20D100x35 | 100 | 35 | 120 | 128 | 40 | 9 | 105×82.5×3 | 80×60 | 2.5 |
| P102-20D125x35 | 125 | 35 | 160 | 153 | 47 | 9 | 105×82.5×3 | 80×60 | 2.5 |
| P102-20D150x40 | 150 | 40 | 200 | 187 | 68 | 11 | 135x105x3 | 105×80 | 3 |
| P102-20D160x40 | 160 | 40 | 200 | 197 | 68 | 11 | 135x105x3 | 105×80 | 3 |
| P102-20D200x50 | 200 | 50 | 310 | 240 | 68 | 11 | 135x105x3 | 105×80 | 3 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| D102-20D080x35 | 80 | 35 | 80 | 106 | / | 9 | 105x90x2 | 80×60 | 2 |
| D102-20D100x35 | 100 | 35 | 100 | 128 | / | 9 | 105x90x2 | 80×60 | 2 |
| D102-20D125x35 | 125 | 35 | 120 | 153 | / | 9 | 105x90x2 | 80×60 | 2 |
| D102-20D150x40 | 150 | 40 | 160 | 187 | / | 11 | 140x115x3 | 105×80 | 3 |
| D102-20D160x40 | 160 | 40 | 160 | 197 | / | 11 | 140x115x3 | 105×80 | 3 |
| D102-20D200x50 | 200 | 50 | 210 | 240 | / | 11 | 140x115x3 | 105×80 | 3 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| P102-20D080x35S | 80 | 35 | 80 | 106 | 37.5 | 9 | 105×82.5×3 | 80×60 | 2.5 |
| P102-20D100x35S | 100 | 35 | 100 | 128 | 40 | 9 | 105×82.5×3 | 80×60 | 2.5 |
| P102-20D125x35S | 125 | 35 | 120 | 153 | 47 | 9 | 105×82.5×3 | 80×60 | 2.5 |
| P102-20D150x40S | 150 | 40 | 160 | 187 | 68 | 11 | 135x105x3 | 105×80 | 3 |
| P102-20D160x40S | 160 | 40 | 160 | 197 | 68 | 11 | 135x105x3 | 105×80 | 3 |
| P102-20D200x50S | 200 | 50 | 210 | 240 | 68 | 11 | 135x105x3 | 105×80 | 3 |
