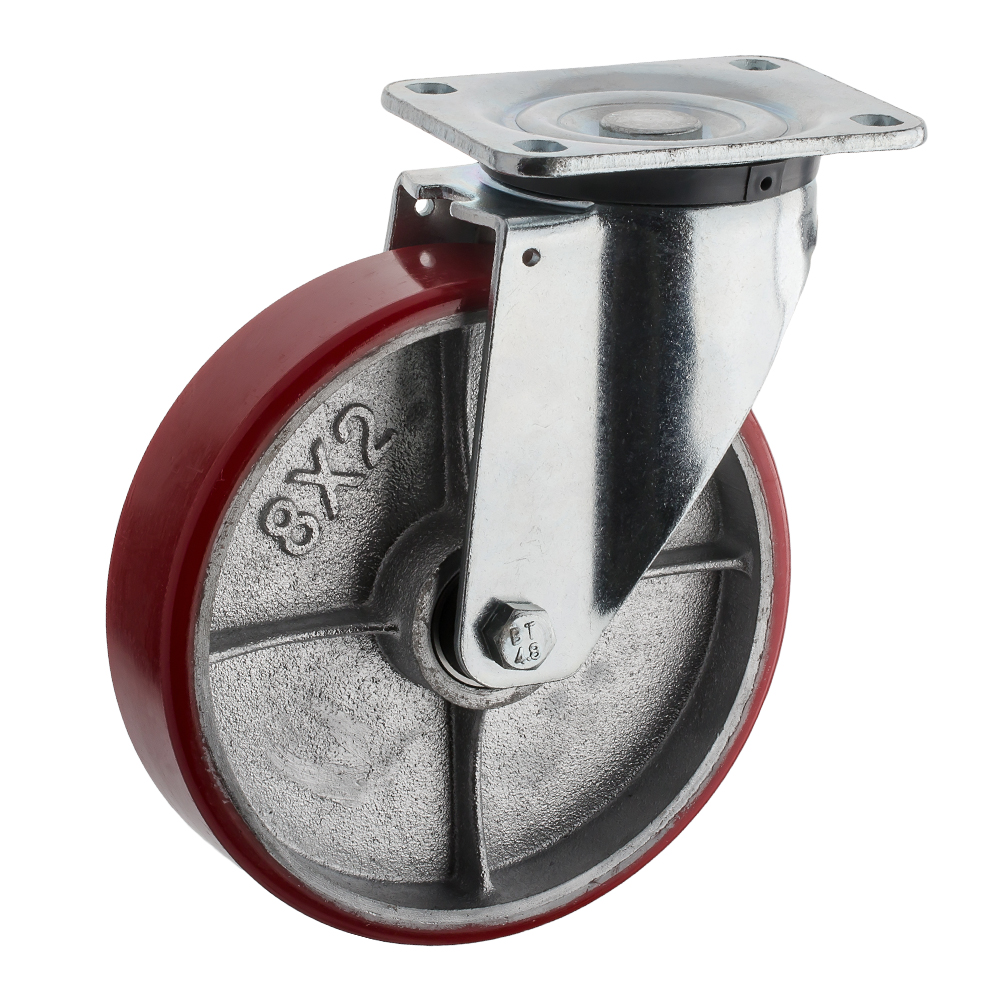

Heavy duty caster, pressed steel with silver zinc plating fork,PU wheel with cast iron center,46D:Roller bearing, 46F:Double ball bearing,
Heavy duty steel housing with zinc plating. |
Heavy duty polyurethane wheel tread, cast iron center |
Double ball bearings |
P160-46F125x50 P160-46F150x50 P160-46F200x50 D160-46F125x50 D160-46F150x50 D160-46F200x50 P160-46F125x50S P160-46F150x50S P160-46F200x50S
Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
P160-46F125x50 | 125 | 50 | 450 | 166 | 55 | 12 | 135x110x6 | 105×80 | 4.2 |
P160-46F150x50 | 150 | 50 | 500 | 194.5 | 55 | 12 | 135x110x6 | 105×80 | 4.2 |
P160-46F200x50 | 200 | 50 | 550 | 241 | 55 | 12 | 135x110x6 | 105×80 | 4.2 |

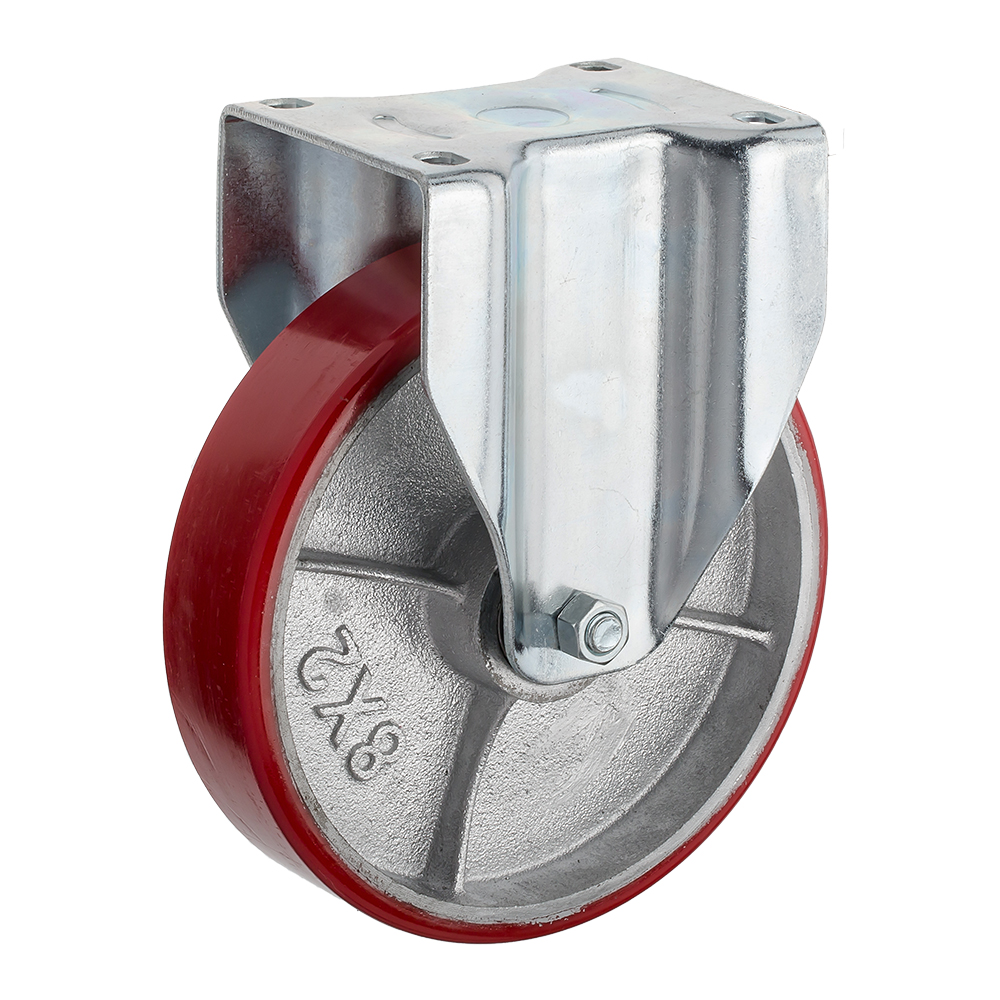

D160-46F125x50 | 125 | 50 | 450 | 166 | / | 12 | 135x110x6 | 105×80 | 3.5 |
D160-46F150x50 | 150 | 50 | 500 | 194.5 | / | 12 | 135x110x6 | 105×80 | 3.5 |
D160-46F200x50 | 200 | 50 | 550 | 241 | / | 12 | 135x110x6 | 105×80 | 3.5 |
P160-46F125x50S | 125 | 50 | 450 | 166 | 55 | 12 | 135x110x6 | 105×80 | 4.2 |
P160-46F150x50S | 150 | 50 | 500 | 194.5 | 55 | 12 | 135x110x6 | 105×80 | 4.2 |
P160-46F200x50S | 200 | 50 | 550 | 241 | 55 | 12 | 135x110x6 | 105×80 | 4.2 |
