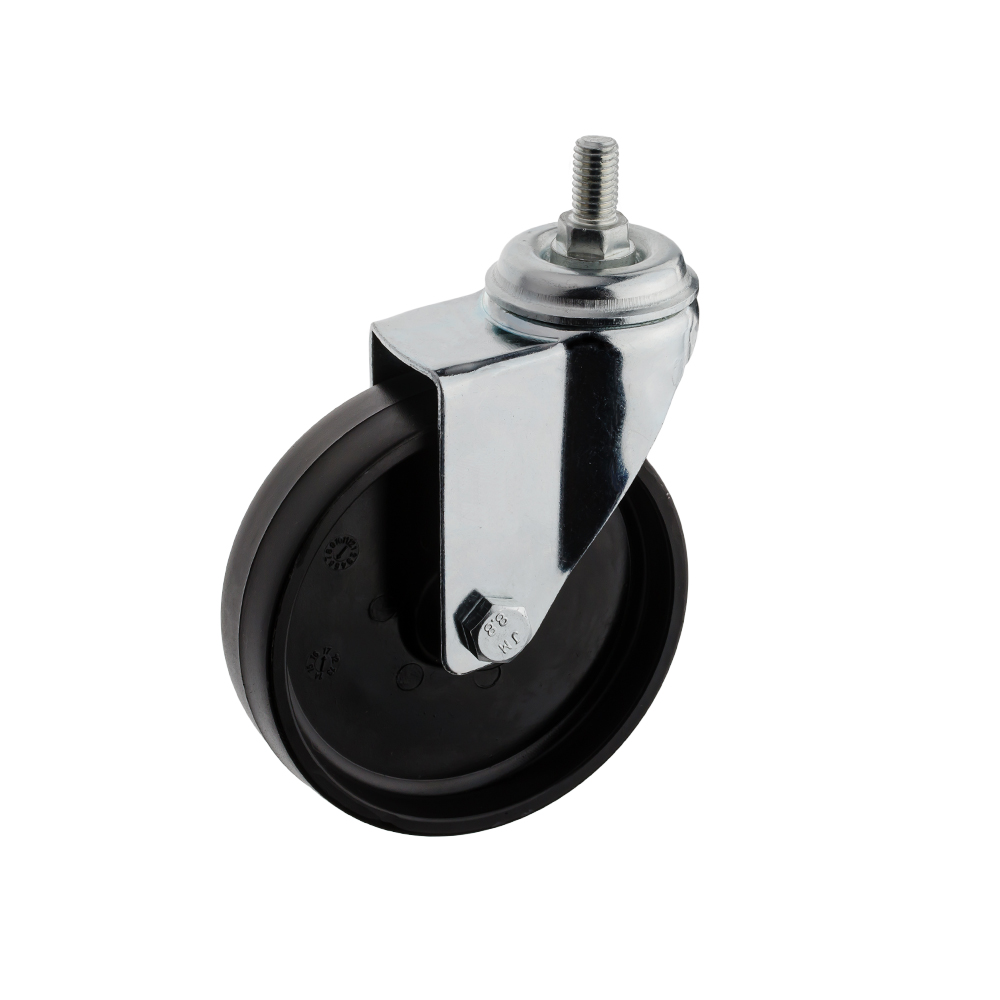

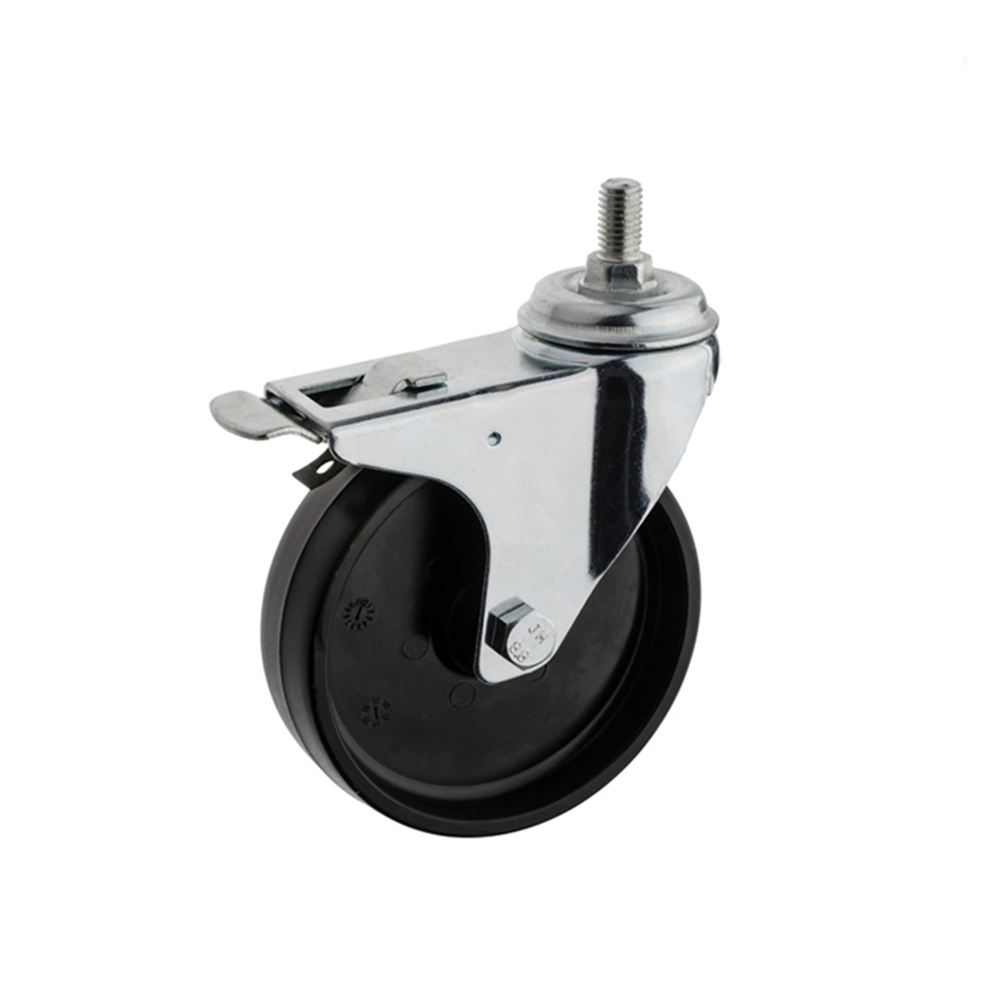

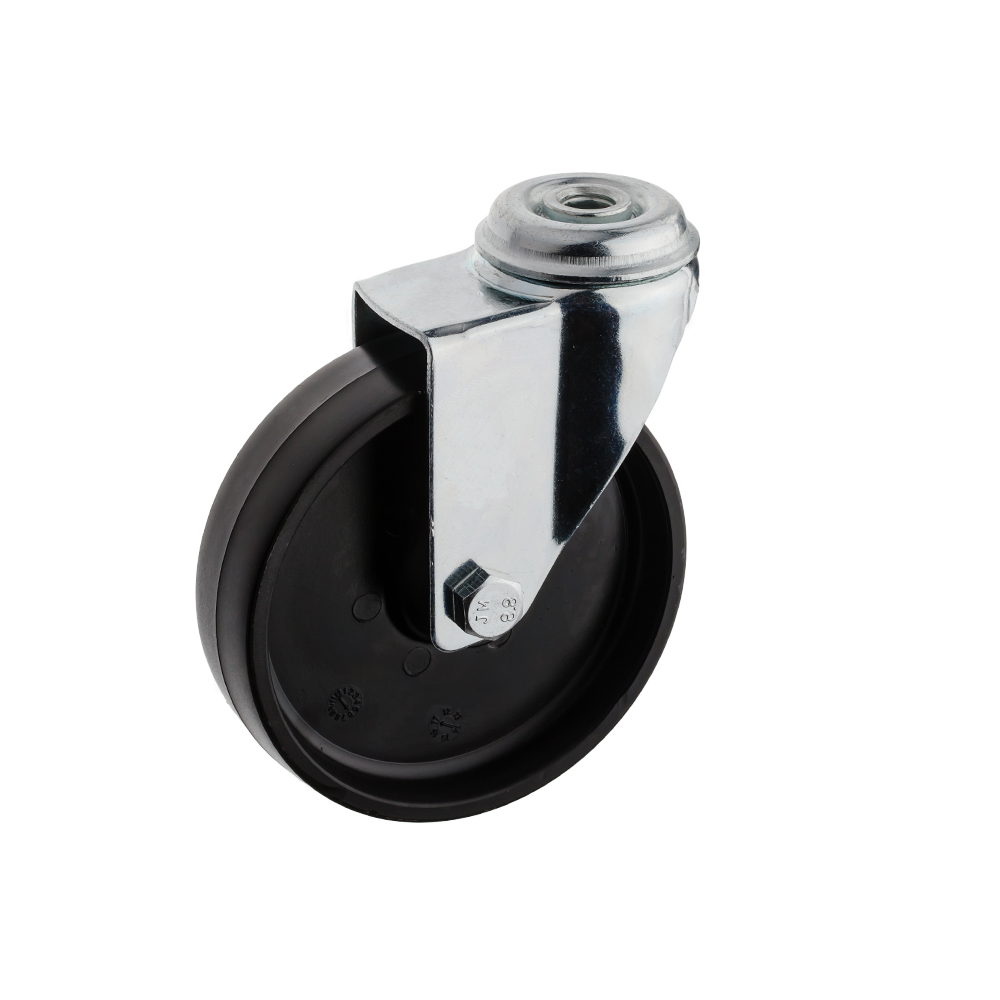

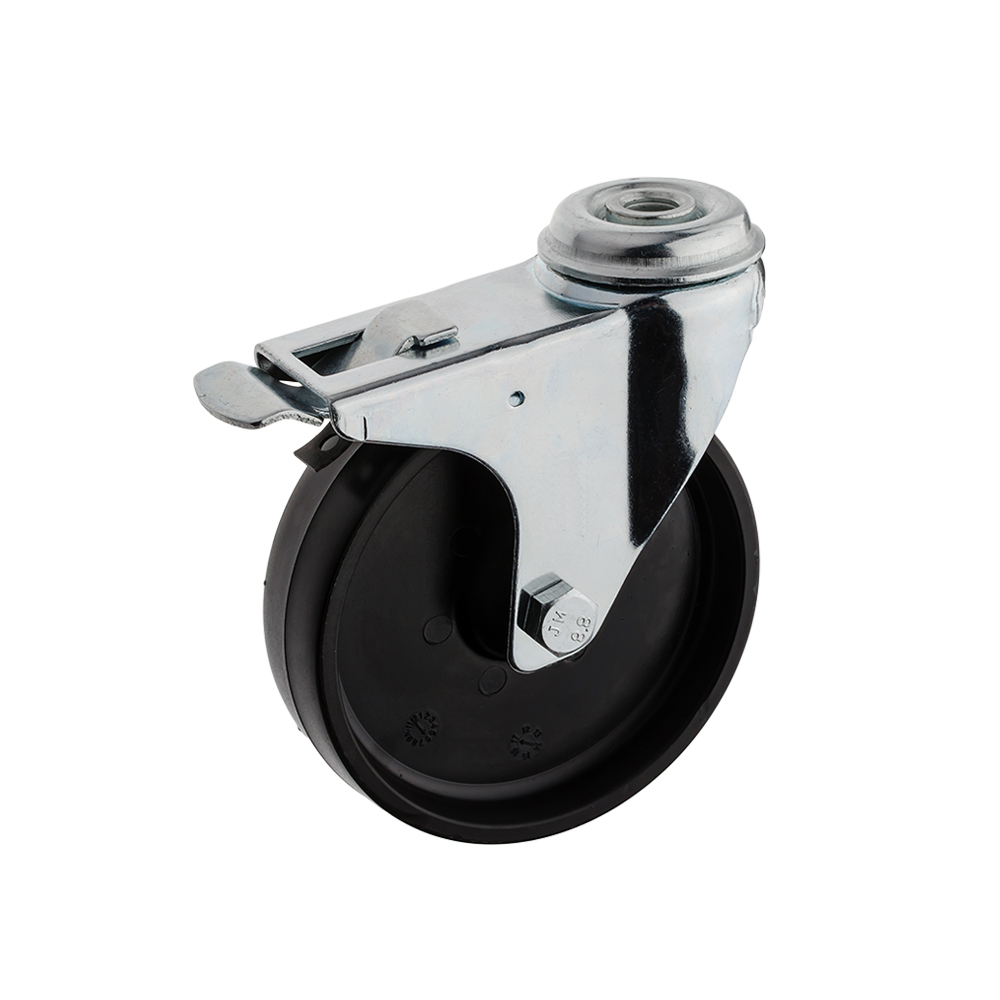

Instrumental caster, steel with zinc plating fork,PP wheel,Plain bearing
| Steel housing with bright zinc plating |
| Plastic wheel |
| Plain bearing |
L110-30BC050x20 L110-30C063x23 L110-30B075x23A L110-30C100x26 L110-30C125x26
L110-30BC050x20S L110-30C063x23S L110-30B075x23AS L110-30C100x26S L110-30C125x26S
G110-30BC050x20 G110-30C063x23 G110-30B075x23A G110-30C100x26 G110-30C125x26
G110-30BC050x20S G110-30C063x23S G110-30B075x23AS G110-30C100x26S G110-30C125x26S
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Barrier Width (mm) |
| L110-30BC050x20 | 50 | 20 | 40 | 77.5 | 26 | 1.5 |
| L110-30C063x23 | 63 | 23 | 50 | 92 | 30 | 2 |
| L110-30B075x23A | 75 | 23 | 50 | 104 | 30 | 2 |
| L110-30C100x26 | 100 | 26 | 70 | 132 | 32 | 2 |
| L110-30C125x26 | 125 | 26 | 80 | 159 | 32 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Barrier Width (mm) |
| L110-30BC050x20S | 50 | 20 | 40 | 77.5 | 26 | 1.5 |
| L110-30C063x23S | 63 | 23 | 50 | 92 | 30 | 2 |
| L110-30B075x23AS | 75 | 23 | 50 | 104 | 30 | 2 |
| L110-30C100x26S | 100 | 26 | 70 | 132 | 32 | 2 |
| L110-30C125x26S | 125 | 26 | 80 | 159 | 32 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Barrier Width (mm) |
| G110-30BC050x20 | 50 | 20 | 40 | 71.5 | 26 | 1.5 |
| G110-30C063x23 | 63 | 23 | 50 | 86 | 30 | 2 |
| G110-30B075x23A | 75 | 23 | 50 | 97.5 | 30 | 2 |
| G110-30C100x26 | 100 | 26 | 70 | 126 | 32 | 2 |
| G110-30C125x26 | 125 | 26 | 80 | 153 | 32 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Barrier Width (mm) |
| G110-30BC050x20S | 50 | 20 | 40 | 71.5 | 26 | 1.5 |
| G110-30C063x23S | 63 | 23 | 50 | 86 | 30 | 2 |
| G110-30B075x23AS | 75 | 23 | 50 | 97.5 | 30 | 2 |
| G110-30C100x26S | 100 | 26 | 70 | 126 | 32 | 2 |
| G110-30C125x26S | 125 | 26 | 80 | 153 | 32 | 2 |
