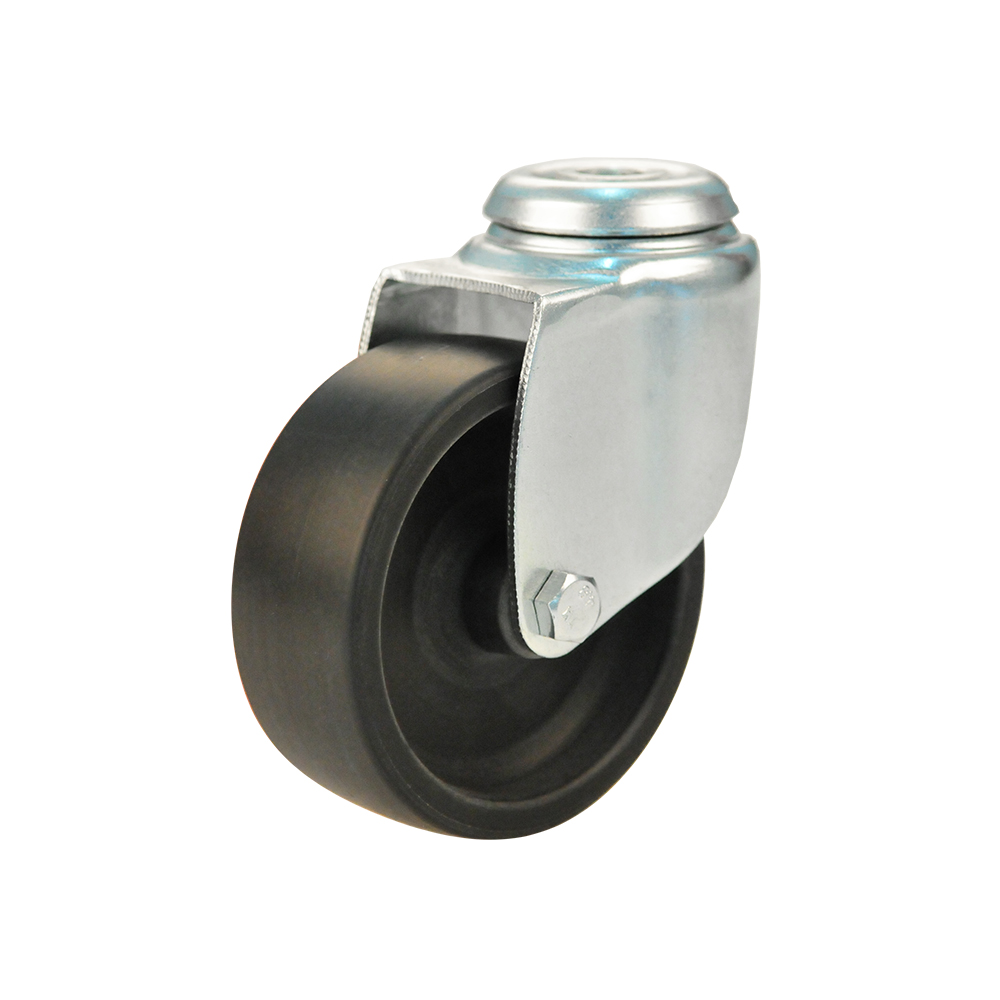

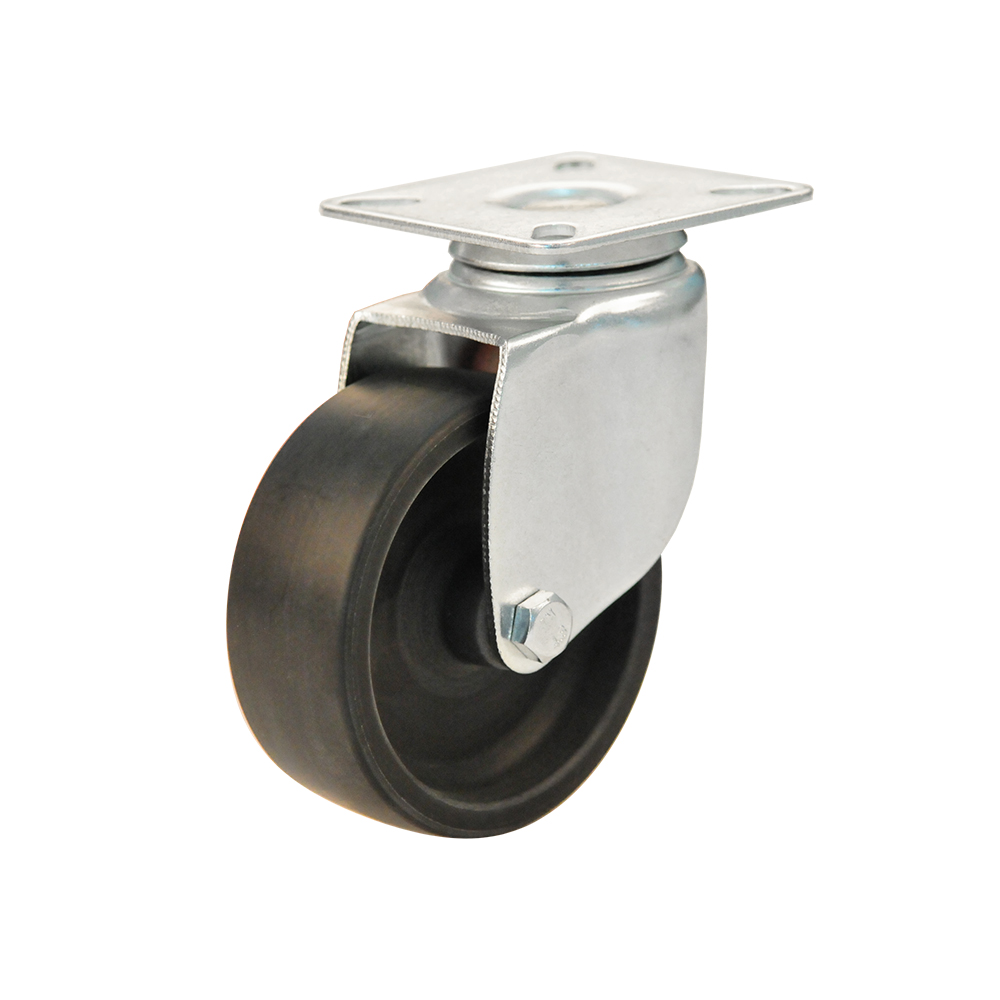

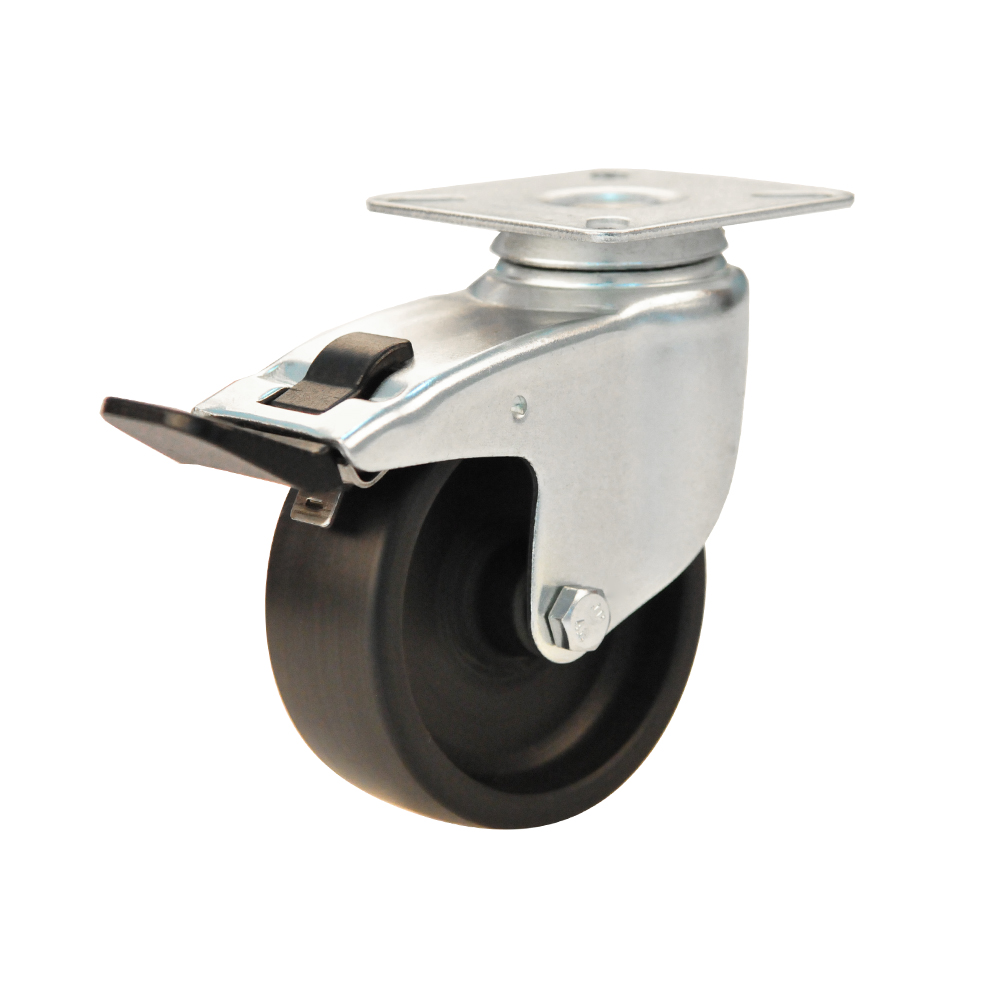

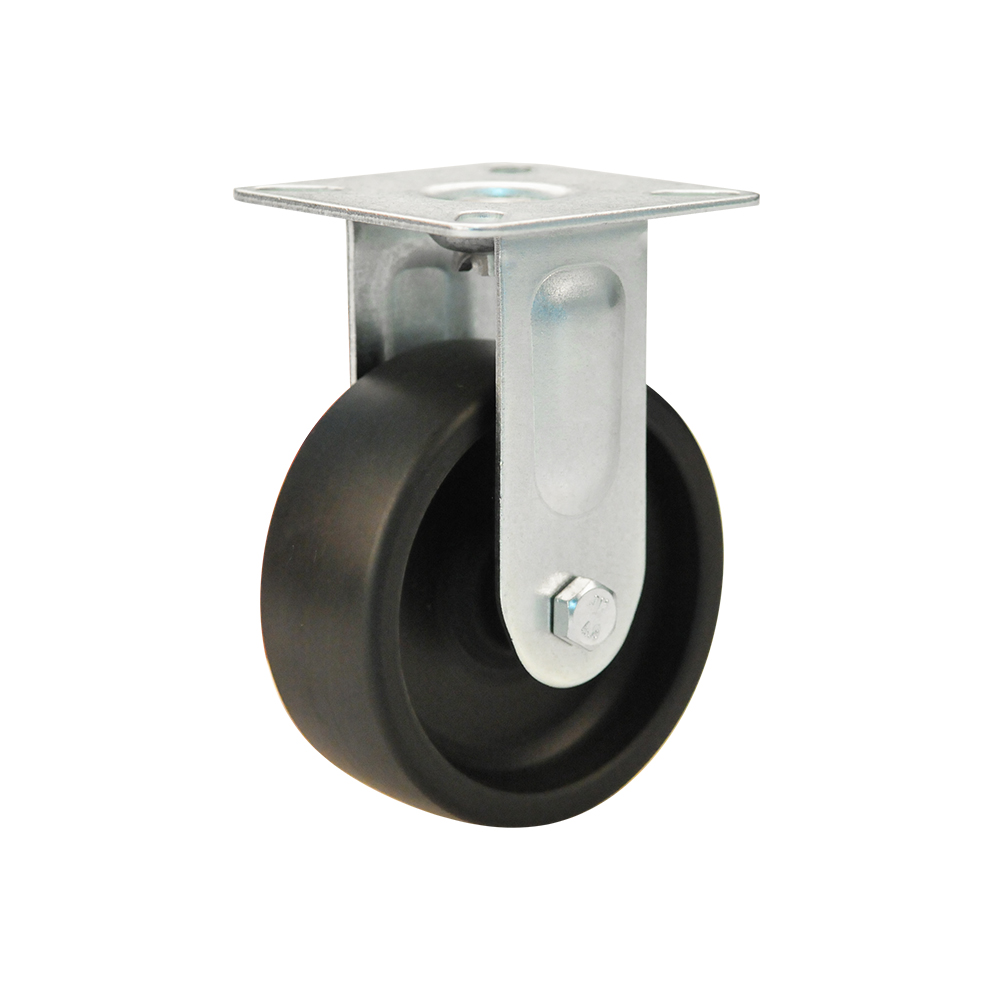

Heavy duty instrumental caster, steel with zinc plating fork,PP wheel,plain bearing
| Steel housing with bright zinc plating |
| Plastic wheel |
| Plain bearing |
P123-30C050x29 P123-30C065x29 P123-30C075x29
D123-30C050x29 D123-30C065x29 D123-30C075x29
P123-30C050x29S P123-30C065x29S P123-30C075x29S
G123-30C050x29 G123-30C065x29 G123-30C075x29
G123-30C050x29S G123-30C065x29S G123-30C075x29S
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| P123-30C050x29 | 50 | 29 | 70 | 75 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
| P123-30C065x29 | 65 | 29 | 80 | 90 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
| P123-30C075x29 | 75 | 29 | 90 | 100 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| D123-30C050x29 | 50 | 29 | 70 | 75 | / | 6.3 | 60x60x2 | 43×43 | 2 |
| D123-30C065x29 | 65 | 29 | 80 | 90 | / | 6.3 | 60x60x2 | 43×43 | 2 |
| D123-30C075x29 | 75 | 29 | 90 | 100 | / | 6.3 | 60x60x2 | 43×43 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| P123-30C050x29S | 50 | 29 | 70 | 75 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
| P123-30C065x29S | 65 | 29 | 80 | 90 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
| P123-30C075x29S | 75 | 29 | 90 | 100 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| G123-30C050x29 | 50 | 29 | 70 | 73.5 | 30 | 10.2 | 2 | ||
| G123-30C065x29 | 65 | 29 | 80 | 88.5 | 30 | 10.2 | 2 | ||
| G123-30C075x29 | 75 | 29 | 90 | 98.5 | 30 | 10.2 | 2 |
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| G123-30C050x29S | 50 | 29 | 70 | 73.5 | 30 | 10.2 | 2 | ||
| G123-30C065x29S | 65 | 29 | 80 | 88.5 | 30 | 10.2 | 2 | ||
| G123-30C075x29S | 75 | 29 | 90 | 98.5 | 30 | 10.2 | 2 |
