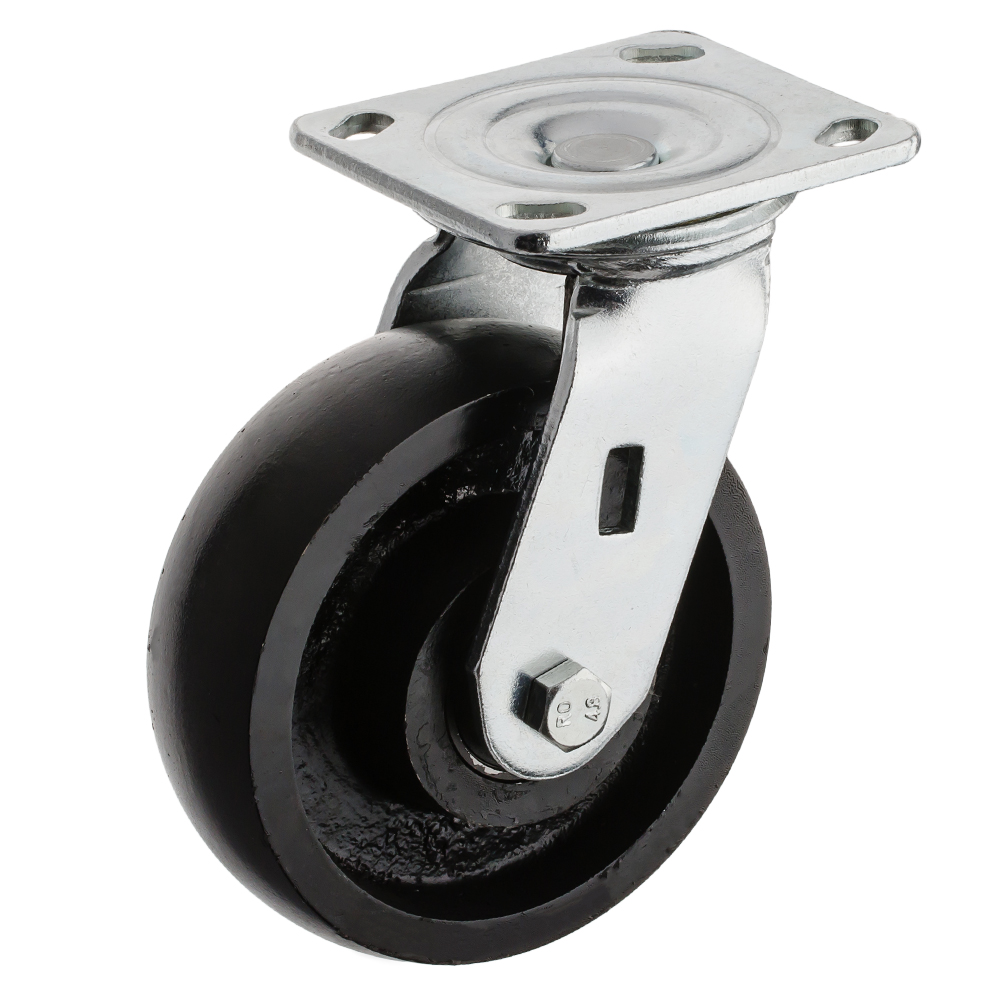

Heavy duty caster, Welding steel with zinc plating fork,
40FD:Cast iron wheel,Double ball bearing
| Heavy duty steel housing with zinc plating. |
| Heavy duty cast iron wheel |
| Double ball bearings |
P701-40FD100x50 P701-40FD125x50 P701-40FD150x50 P701-40FD200x50
D701-40FD100x50 D701-40FD125x50 D701-40FD150x50 D701-40FD200x50
P701-40FD100x50Z P701-40FD125x50Z P701-40FD150x50Z P701-40FD200x50Z
P701-40FD100x50S P701-40FD125x50S P701-40FD150x50S P701-40FD200x50S
| Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
| P701-40FD100x50 | 100 | 50 | 400 | 142 | 32 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD125x50 | 125 | 50 | 500 | 165 | 36 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD150x50 | 150 | 50 | 600 | 190 | 41 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD200x50 | 200 | 50 | 800 | 240 | 52 | 11 | 114x100x6 | 84×71 | 6 |
| D701-40FD100x50 | 100 | 50 | 400 | 142 | / | 11 | 114x100x6 | 84×71 | 6 |
| D701-40FD125x50 | 125 | 50 | 500 | 165 | / | 11 | 114x100x6 | 84×71 | 6 |
| D701-40FD150x50 | 150 | 50 | 600 | 190 | / | 11 | 114x100x6 | 84×71 | 6 |
| D701-40FD200x50 | 200 | 50 | 800 | 240 | / | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD100x50Z | 100 | 50 | 400 | 142 | 32 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD125x50Z | 125 | 50 | 500 | 165 | 36 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD150x50Z | 150 | 50 | 600 | 190 | 41 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD200x50Z | 200 | 50 | 800 | 240 | 52 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD100x50S | 100 | 50 | 400 | 142 | 32 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD125x50S | 125 | 50 | 500 | 165 | 36 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD150x50S | 150 | 50 | 600 | 190 | 41 | 11 | 114x100x6 | 84×71 | 6 |
| P701-40FD200x50S | 200 | 50 | 800 | 240 | 52 | 11 | 114x100x6 | 84×71 | 6 |
